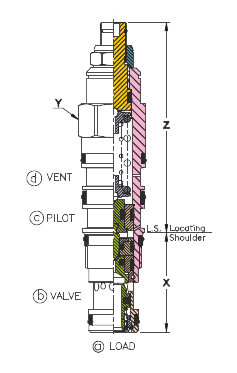

Screw-In-Cartridge Valves - Counterbalance Cartridge Valves

Vented, 280 Bar Maximum Setting SCBV1

General Description

1. Load holding to 3000 psi with 4000 psi valve setting
2. Maximum valve leakage at reseat = 0.4 cc/min.
3. Reseat exceeds 85% of set pressure
4. Factory pressure setting established at 32.8 cc/min.
5. Free flow check cracking pressure = 40 psi
6. Counterbalance valves should be set at least 1.3 times the maximum load induced pressure.
7. Adjustment Range - 'YO' is standard set at 3000 psi
8. Pilot Ratio - 3:1
