Industrial Hydraulic - Pressure Control Valves

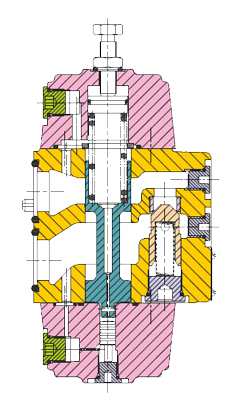

Pressure Control Valves PCV5
General Description
Microtact "hydrocushion" type pressure control valves are used to control the sequencing, unloading, back pressure, and counterbalancing of oil flow in hydraulic systems. Control is initiated by a pressure rise which can be sensed either internally (directly) or remotely. Models are available with or without integral reverse free flow checks.
| Basic Characteristics | |
|---|---|
| Ratings - Rate Pressure (maximum) | 210 bar (3000 psi) |
| Rated Capacity (maximum) | PCV5-03 = 45 L/min PCV5-06 = 114 L/min PCV5-10 = 284 L/min |
| 140 bar (2000 psi) permitted on the full piston area at the button cover ('p' connection) & at the top cover (spring chamber) | |
| Rated capacities are based on using fluid with a specific gravity of 0.865 and a viscosity of 20 cSt (100 SUS) | |
