Industrial Hydraulic - Check Valves

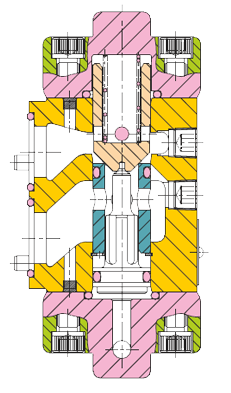

Pilot Operated Check Valves CV4
General Description
These Pilot Operated Check Valves operate as a standard Check Valve and can be opened by remote pilot pressure on the control piston to permit reverse flow. The amount of pilot pressure required to open the check is stated as a ratio of the pressure above the check to the pilot pressure.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 140 bar (2000 psi) |
| Rated Capacity | CV4 - 06 = 70 L/min CV4 - 10 = 170 L/min |
| Seal Kit | CV4 - 06 = VC90050 CV4 - 10 = VC90051 |
| Mounting Subplate | CV4 - 06 = VC20115 CV4 - 10 = VC20116 |
